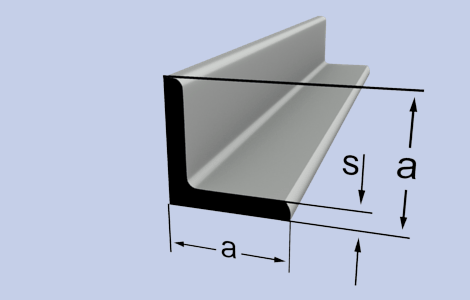

| Abmessungen mm |
Gewicht Kg/m |
|---|---|
| 20 x 3 | 0,880 |
| 20 x 4 | 1,140 |
| 25 x 3 | 1,120 |
| 25 x 4 | 1,450 |
| 25 x 5 | 1,770 |
| 30 x 3 | 1,360 |
| 30 x 4 | 1,780 |
| 30 x 5 | 2,180 |
| 35 x 3 | 1,600 |
| 35 x 4 | 2,100 |
| 35 x 5 | 2,570 |
| 35 x 6 | 3,040 |
| 40 x 3 | 1,840 |
| 40 x 4 | 2,420 |
| 40 x 5 | 2,970 |
| 40 x 6 | 3,520 |
| 45 x 4 | 2,740 |
| 45 x 5 | 3,380 |
| 45 x 6 | 4,000 |
| 45 x 7 | 4,600 |
| 50 x 4 | 3,060 |
| 50 x 5 | 3,770 |
| 50 x 6 | 4,470 |
| 50 x 7 | 5,150 |
| 50 x 8 | 5,820 |
| 50 x 9 | 6,470 |
| 55 x 5 | 4,180 |
| 55 x 6 | 4,950 |
| 55 x 8 | 6,460 |
| 60 x 5 | 4,570 |
| 60 x 6 | 5,420 |
| 60 x 8 | 7,090 |
| 60 x 10 | 8,690 |
| 65 x 6 | 5,910 |
| 65 x 7 | 6,830 |
| 65 x 8 | 7,730 |
| 65 x 9 | 8,620 |
| 70 x 6 | 6,380 |
| 70 x 7 | 7,380 |
| 70 x 9 | 9,340 |
| 70 x 11 | 11,200 |
| 75 x 7 | 7,940 |
| 75 x 8 | 9,030 |
| 75 x 10 | 11,100 |
| 80 x 7 | 8,490 |
| 80 x 8 | 9,660 |
| 80 x 10 | 11,900 |
| 80 x 12 | 14,100 |
| 90 x 8 | 10,900 |
| 90 x 9 | 12,200 |
| 90 x 11 | 14,700 |
| 90 x 13 | 17,100 |
| 100 x 8 | 12,200 |
| 100 x 10 | 15,100 |
| 100 x 12 | 17,800 |
| 100 x 14 | 20,600 |
| 100 x 16 | 23,200 |
| 110 x 10 | 16,600 |
| 110 x 12 | 19,700 |
| 110 x 14 | 22,800 |
| 120 x 11 | 19,900 |
| 120 x 12 | 21,600 |
| 120 x 13 | 23,300 |
| 120 x 15 | 26,600 |
| 130 x 12 | 23,600 |
| 130 x 14 | 27,200 |
| 130 x 16 | 30,900 |
| 140 x 13 | 27,500 |
| 140 x 15 | 31,400 |
| 150 x 12 | 27,300 |
| 150 x 14 | 31,600 |
| 150 x 15 | 33,800 |
| 150 x 16 | 35,900 |
| 150 x 18 | 40,100 |
| 150 x 20 | 44,200 |
| 160 x 15 | 36,200 |
| 160 x 17 | 40,700 |
| 160 x 19 | 45,100 |
| 180 x 16 | 43,500 |
| 180 x 18 | 48,600 |
| 180 x 20 | 53,700 |
| 200 x 16 | 48,500 |
| 200 x 18 | 54,300 |
| 200 x 20 | 59,900 |
| 200 x 24 | 71,100 |
| 250 x 18 | 68,400 |
| 250 x 20 | 75,700 |
| 250 x 24 | 90,900 |
